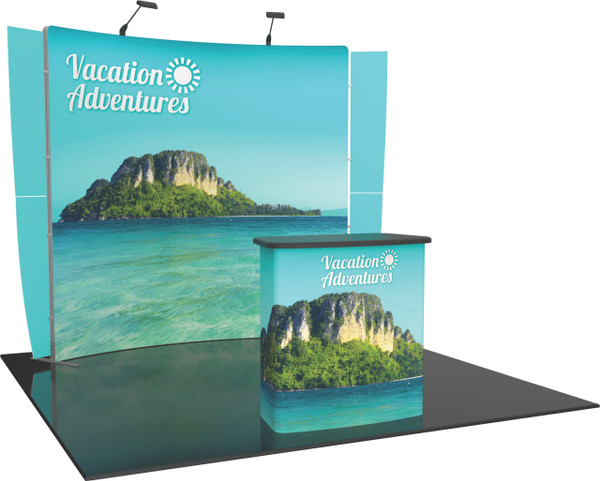

Vector Frame Master Kit 09 - (VF-K-09)
Address your audience with confidence from within your custom Vector Frame Master Kit. The 50-millimeter silver extrusion frame is sturdy and easy to put together and there are four counter finishes to choose from. The frame supports graphic fabrics that will feature your logo or design printed in brilliant hi-res from a G7 color certified printer. Setting up the push-in graphic fabric is so easy, it can be installed in the frame by a single person. Optional (where available) accent lighting, computers, accessories, monitor mounts and interior LED edge lighting can be attached as per the Vector Frame Master Kit directions and the visual indicators located on the frame.

Production Time is 5-7 business days after proof approval. (Does not include shipping time)

Design Templates:

Product Specs Sheet (PDF)

Downloadable Design template(PDF)

Downloadable Counter Design template(PDF)

features and benefits:
- 50mm silver extrusion frame
- Single-sided SEG dye-sublimated push-fit fabric graphics
- Counter available in four thermoform finishes, shown below

This Kit Includes:
- Frame, dye-sublimated graphic, four accent wings, two 120 watt lights, counter and two wheeled molded cases
- Lifetime hardware warranty against manufacturer defects

Dimensions:

Hardware - Assembled unit:
117”w x 102”h x 23”d
2972mm(w) x 2591mm(h) x 584mm(d)
Counter:
38.5”w x 40.5”h x 19.88”d
977.9mm(w) x 1,028.7mm(h) x 504.952mm(d)

Graphic - Total visual area:
Center graphic panel: 99.174”w x 94.375”h 2519mm(w) x 2397mm(h)
Top accent wings: 11.811”w x 45.27”h 300mm(w) x 1150mm(h)
Bottom accent wings: 10.62”w x 45.27”h 270mm(w) x 1150mm(h)
Counter:
Front (wraps around counter): 82.04”w x 39.24”h 2084mm(w) x 997mm(h)
Back door graphic: 14.79”w x 39.24”h 376mm(w) x 997mm(h)
Please be sure to include a 2” bleed around the perimeter of the center graphic panel and a 1/2” bleed around the perimeter of all wing graphics.

Shipping dimensions - ships in 2 cases: 1 OCH2 case:
52”l x 30”w x 15”h
1320.8mm(l) x 762mm(w) x 381mm(h)
1 OCE case:
66”l x 18”w x 18”h
1676.4mm(l) x 457.2mm(w) x 457.2mm(h)
Approximate shipping weight (entire kit): 162.54 lbs / 73.7 kgs
